Mini USB Hardwire Cable Kit with 12V-24V GPS Receiver for 24-Hour Parking Monitoring and L1 Frequency Band

Name: Mini USB Hardwire Cable Kit with 12V-24V GPS Receiver for 24-Hour Parking Monitoring and L1 Frequency Band
Brand: Shenzhen Youwei Communication Co., Ltd.
SKU: YW-168G3
Price: 9.00 USD
Availability: InStock

Modelnummer:	YW-168G3
MOQ:	1
Prijs:	$8-10

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

Guangdong, China

Chipset:

GK-9501

Frequentieband:

Codetype:

C/a code

Protocolversie:

NMEA 0183 v4.1

Baudrente:

9.600 BPS

Kanaaltelling:

Tracking gevoeligheid:

-161DBM

Reicquisitiegevoeligheid:

-160dbm

Koude starttijd:

29 seconden

Warme starttijd:

28 seconden

Warm starttijd:

1 seconde

Positie nauwkeurigheid:

<2,5 miljoen autonoom

Snelheidsnauwkeurigheid:

0,1 m/s

Maximale hoogte:

50.000 meter

Maximale snelheid:

515 m/s

Markeren:

12V-24V GPS Receiver

24-Hour Parking Monitoring GNSS Module

L1 Frequency Band USB Hardwire Cable Kit

Productbeschrijving

Mini USB Hardwire Cable Kit with 12V-24V GPS Receiver for 24-Hour Parking Monitoring Dash Cam

GPS Receiver Specifications

Feature	Specification
Chip	MediaTek GK9051 (Rom Version)
Frequency	L1 frequency band
Code	C/A Code
Protocol	NMEA 0183 v4.1 GALILEO L1 open service (with upgrade) Default:GGA,GSA,GSV,RMC Support:VTG,GLL,TXT ublox binary and NMEA Command
Available Baud Rate	9,600 bps
Channels	66
Sensitivity	Tracking:-161dBm Reacquisition:-160dBm ColdStart:-147dBm
Cold Start	29 seconds, average
Warm Start	28 seconds, average
Hot Start	1 second, average
Accuracy	HorizontalPosition:Autonomous<2.5m average, SBAS < 2.0m average Velocity: 0.1 m/s
Maximum Altitude	50,000 meter
Maximum Velocity	515 m/s(1000 knots)
Dynamics	4G
Max navigation update rate	1 Hz (Default 1Hz)

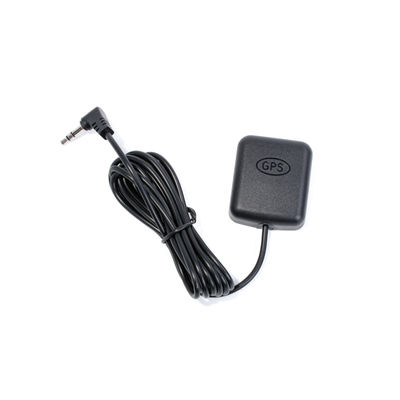

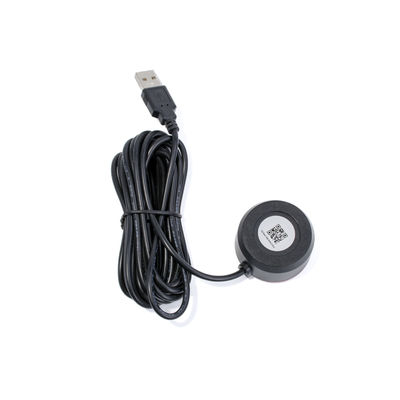

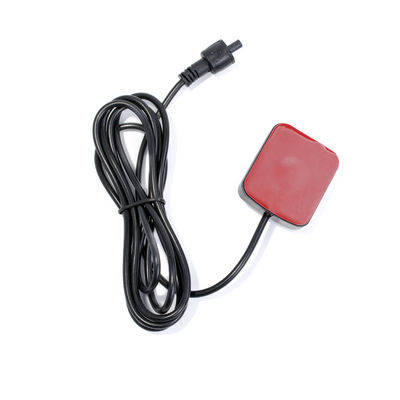

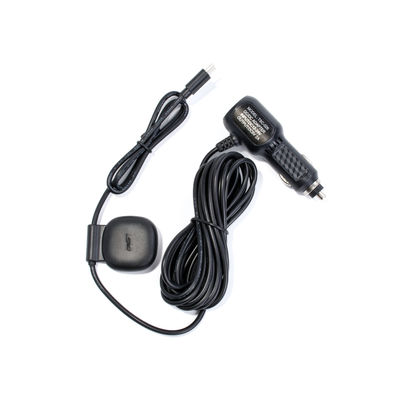

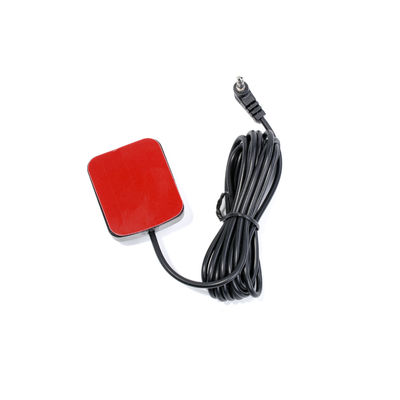

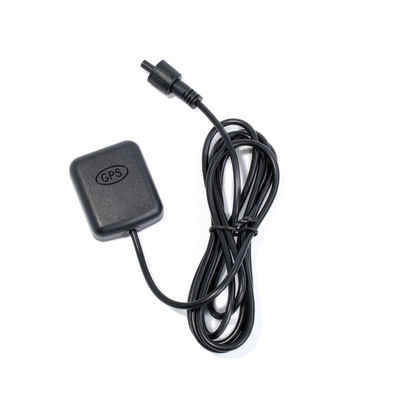

Product Images

Our Services

Real-time order tracking with regular updates on production progress and shipping details
Seamless communication throughout the sales process with dedicated customer service
Strict quality assurance with [X]-year warranty coverage
Comprehensive technical support including installation guidance and maintenance advice
Hassle-free return and exchange policy within [X] days of receiving the product
