Customized High Accuracy GPS GNSS Module with 72 Channels and 1Hz-50Hz Update Rate for Industrial Applications

Name: Customized High Accuracy GPS GNSS Module with 72 Channels and 1Hz-50Hz Update Rate for Industrial Applications
Brand: Shenzhen Youwei Communication Co., Ltd.
SKU: YW-18182G3
Price: 3.20 USD
Availability: InStock

Modelnummer:	YW-18182G3
MOQ:	10
Prijs:	$3.20-4

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

Guangdong, China

Afmetingen:

18x18x2

Gevoeligheid:

Tracking: -165dbm tot -162dbm

Positioneringsnauwkeurigheid:

Standaard: 2,5 m (SBAS) / 5m (autonoom)

Communicatie -interface:

I2C, USB, SPI, UART

satellietsysteem:

GPS, QZSS, Beidou, Glonass, Galileo, SBAS

Max Update Rate:

1~10Hz optioneel

Kanalen:

72 kanalen of aangepast

TTFF Cold Start:

≤30s

Ttff Hot Start:

≤ 1 s

Werkspanning:

3.3V, 5V, 2.7V-5.5V

Stroomverbruik:

Actief: 25MA-50MA, slaap: <1MA

Temperatuurbereik:

Commercieel: -20 ° C tot +70 ° C, industrieel: -40 ° C tot +85 ° C, Automotive: -40 ° C tot +105 ° C

Antenne -winst:

Standaard: 28dB, High-Gain: 35DB

Gegevensinterface:

UART, I2C/SPI, USB 2.0/3.0, kan bus

Protocollen:

NMEA 0183, UBX, RTCM 3.x

Markeren:

72 Channels GPS Module

1Hz-50Hz Update Rate GNSS Module

Bluetooth/Wi-Fi/4G LTE TCXO GPS Module

Productbeschrijving

Customized High Accuracy GPS GNSS Module with Industrial-grade Temperature-compensated Crystal Oscillator (TCXO)

YW-18182G3 GPS Module Ordering Information

1. Core Specifications

Option Category	Available Choices
Satellite Systems	GPS (L1 C/A) GPS + GLONASS GPS + Galileo GPS + BeiDou Multi-constellation (All systems)
Positioning Accuracy	Standard: 2.5m (SBAS) / 5m (autonomous) High-Precision: <1m (RTK/PPK) Sub-meter (with DGPS)
Channels	72 channels or customized

2. Performance & Sensitivity

Option Category	Available Choices
Update Rate	1Hz (default) 5Hz/10Hz (navigation) 20Hz/50Hz (drone/racing)
TTFF	Cold start: ≤30s Hot start: ≤1s A-GPS assisted: ≤5s
Sensitivity	Tracking: -165dBm to -162dBm Acquisition: -148dBm to -160dBm

3. Interfaces & Communication

Option Category	Available Choices
Data Interface	UART (9600/115200 bps) I2C/SPI USB 2.0/3.0 CAN bus (automotive)
Protocols	NMEA 0183 (default) UBX (u-blox binary) RTCM 3.x (RTK)
Wireless Connectivity	Bluetooth/BLE Wi-Fi 4G LTE (with GNSS+cellular modules)

4. Power & Environmental

Option Category	Available Choices
Operating Voltage	3.3V (low-power) 5V (industrial) Wide range: 2.7V-5.5V
Power Consumption	Active: 25mA-50mA Sleep: <1mA Supercapacitor backup (optional)
Temperature Range	Commercial: -20°C to +70°C Industrial: -40°C to +85°C Automotive: -40°C to +105°C

5. Antenna Options

Option Category	Available Choices
Antenna Type	Passive ceramic patch (embedded) Active external (SMA/FAKRA) Magnetic mount
Antenna Gain	Standard: 28dB High-gain: 35dB (for weak signals)

6. Certifications & Compliance

Option Category	Available Choices
Certifications	FCC/CE/RoHS/Country-specific Professional Certification

7. Additional Features

Option Category	Available Choices
Data Logging	Built-in flash (4MB-32MB) MicroSD slot
Firmware Upgrades	OTA (Wi-Fi/cellular) USB/UART local update
Special Functions	Geofencing Dead reckoning (DR) Anti-jamming (military-grade)

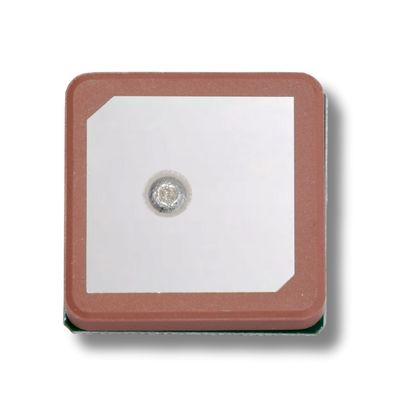

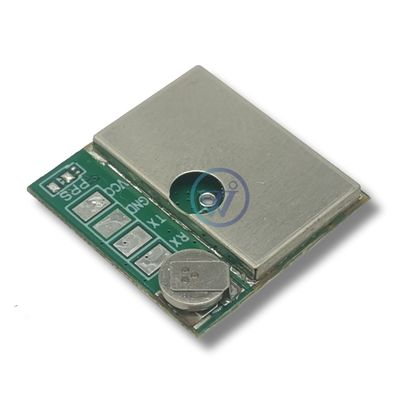

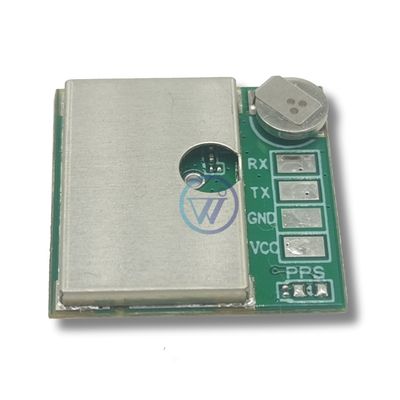

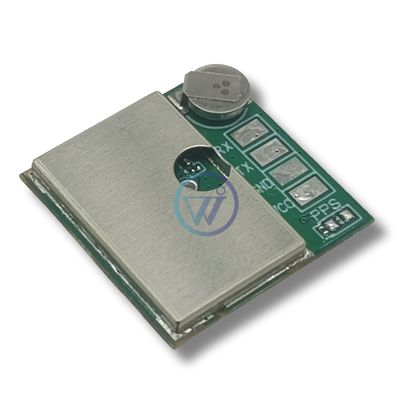

Product Images
